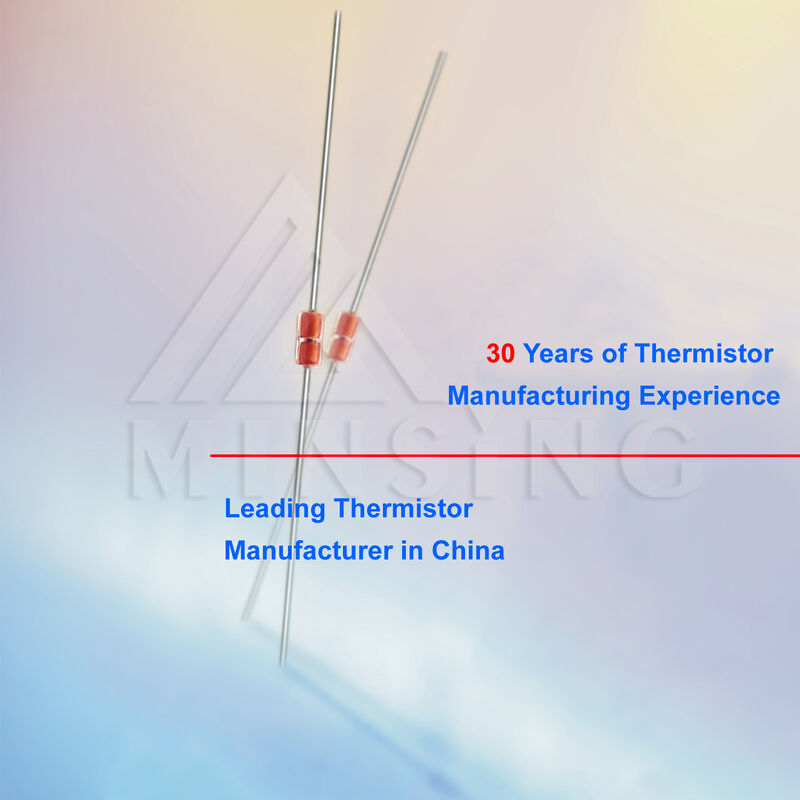

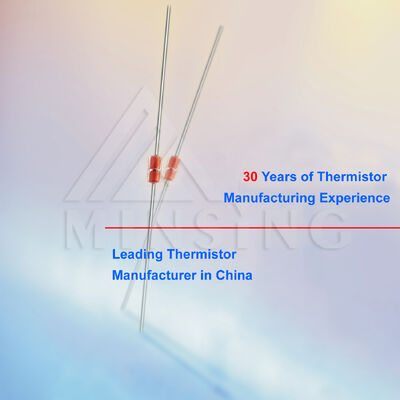

DO-35 Standard Series Glass Encapsulated Thermistors
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Hefei Minsing |
| Certificación: | UL,REACH, ROHS |
| Número de modelo: | MF58, DO35 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 500 piezas |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | a granel, cinta |
| Tiempo de entrega: | 2-7 días laborables |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 100 millones de piezas por año |
|
Información detallada |
|||
| Material de la cabeza: | Vaso | Cable conductor: | Alambre de acero revestido de cobre chapado en Ni o Sn |
|---|---|---|---|
| Tamaño de la cabeza: | Φ1.8mm | Longitud de alambre: | 28mm |
| R25℃: | 0,3 KΩ-4000 KΩ | valor B: | 2500K-5000K |
| R de la tolerancia: | el 1%, el 2%, el 3%, el 5% | Tolerancia de B: | el 1%, el 2%, el 3%, el 5% |
Descripción de producto

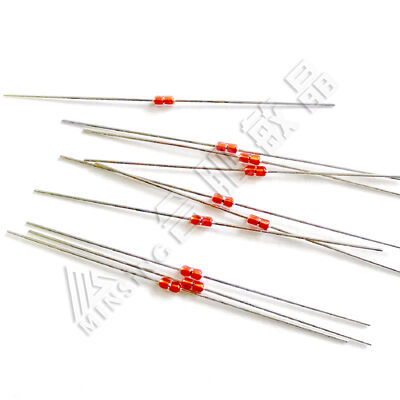

DO-35 Standard Series Glass Encapsulated Thermistors
DO-35 standard glass-encapsulated NTC thermistors adopt hermetic glass sealing with axial leads, featuring standardized dimensions, high temperature resistance and excellent long-term stability, perfectly suited for automatic assembly insertion.
Features:
• Stability, high reliability
• Resistance range: 0.3 ~ 4000KΩ
• High resistance precision
• Due to the use of glass packaging, can be used at high temperature and humidity and other harsh environments
• Small size, light weight, rugged, easy in Automated Installer
• Thermal sensing quickly
• Working temperature range: -55 ℃ ~ + 300 ℃
• Body size: Φ1.8mm X 3.8mm
• Agency recognition:UL/cUL
• RoHS compliant
Applications:
Temperature compensation and detection for :
• Household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.)
• Office equipment (copiers, printers etc.)
• Industrial, medical, environmental, weather and food processing equipment
• Liquid level detection and flow rate measurement
• Mobile phone battery
• Apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.
MJ MF 58 -3470 -103 J
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Glass sealing type MF58 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF58-280-301□ | 0.3 | 2800 |
In still air ≥ 2.4mW/℃ |
In still air ≤ 10s |
-55+300℃ |
| MJMF58-338-202□ | 2 | 3380 | |||
| MJMF58-347/395-502□ | 5 | 3470/3950 | |||
| MJMF58-338/347-103□ | 10 | 3380/3470 | |||
| MJMF58-360//395-103□ | 10 | 3600/3950 | |||
| MJMF58-425-203□ | 20 | 4250 | |||
| MJMF58-395/399-473□ | 47 | 3950/3990 | |||
| MJMF58-395/399-503□ | 50 | 3950/3990 | |||
| MJMF58-395/399-104□ | 100 | 3950/3990 | |||
| MJMF58-420/425-204□ | 200 | 4200/4250 | |||
| MJMF58-440-474□ | 470 | 4400 | |||
| MJMF58-445-145□ | 1400 | 4450 |
FAQ:
1.Are you a factory or trading company?
We are a factory founded in 1994 and have over 28 years’ OEM and international trading experience.
2.What’s your main product?
Our main products are NTC Thermistor and Temperature sensor.
3.Any certification of your company or product?
We have certificates of ISO 9001:2015, IATF16949:2016, CE, UL, REACH, RoHS.
4.Which countries have your product been exported to ?
We have exported our product to over 30 countries , such as Germany,America,Poland, Filand,Canada, Spain, Italy, Sweden,France,Russia,Denmark,Netherland,Thailand,Turkey,Brazil, Mexico, Iran, U.A.E , Korea, Argentina etc.
5.Can I visit your factory?
We have over 7000 square meters of workspace and sincerely welcome your business visit.
6.Do you accept OEM or ODM?
Of course.
7.Any quality guarantee or after-sales service?
If any quality complaint , we will give out solution within 5 days.
