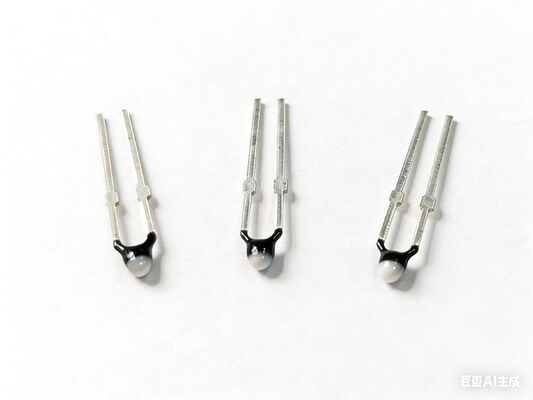

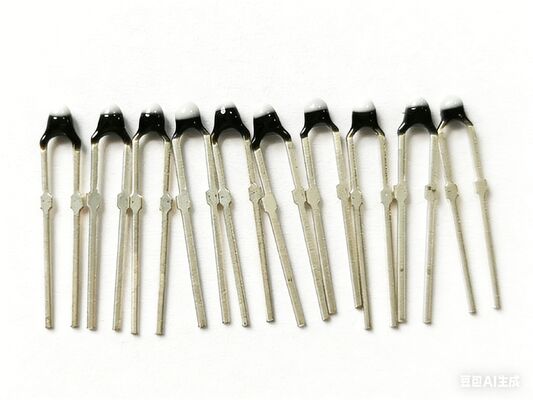

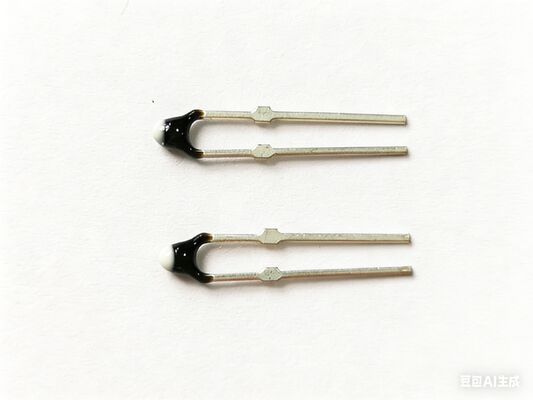

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Hefei Minsing |
| Certificación: | IATF16949/ISO9001/CE/RoHS |
| Número de modelo: | MF5A-3T |
Pago y Envío Términos:
| Cantidad de orden mínima: | 500 piezas |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | A granel |
| Tiempo de entrega: | 2-10 días laborables |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 50 millones de pedazos por año |
|
Información detallada |
|||
| Material de la cabeza: | Epoxy | Cable conductor: | 0,5 aleación 42 estañada |
|---|---|---|---|
| Tamaño de la cabeza: | Φ2.4×Φ3.7mm | Longitud de alambre: | 17 mm |
| R25℃: | 0.5KΩ-2000KΩ | Valor de B: | 3000K-4500K |
| R de la tolerancia: | ±1%, ±2%, ±3%, ±5% | Tolerancia de B: | ±0,5% a ±3% |
Descripción de producto

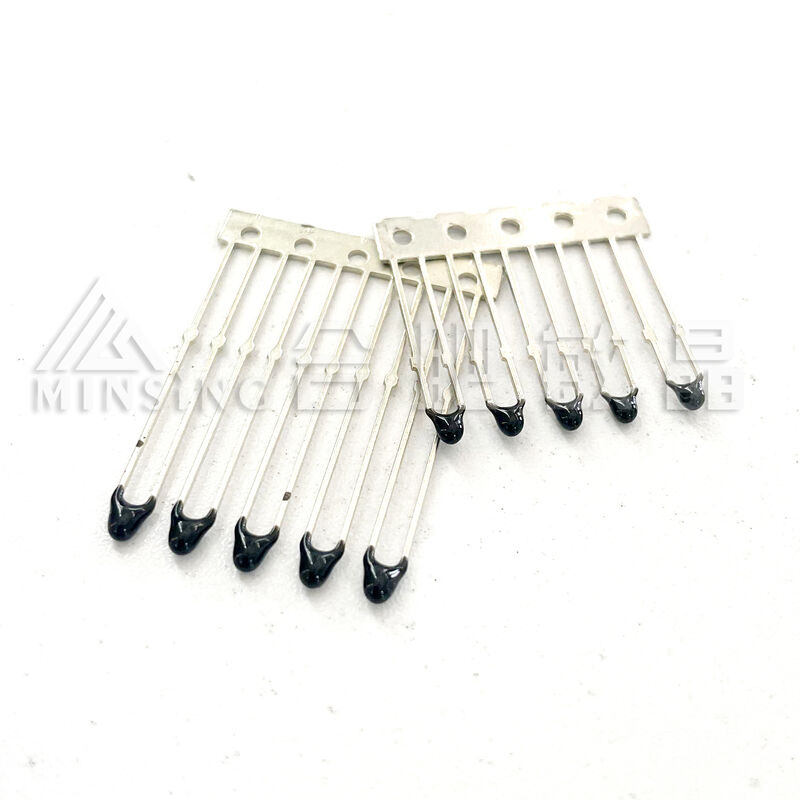

103AT-2 Series Epoxy Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape
Product Feature:
Uniform shape facilitates automated assembly / Long term reliability
Application:
Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,
fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,
vending machines, refrigerated display cases, agricultural equipment
Caution:
• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).
